Capillary / Micro Scale Columns
Shim-pack MC Series
Standard Columns for High Sensitivity Analysis of
Components in Biological Samples with Metal
Coordinative Adsorption Suppressed
Analysis Column Shim-pack MC C18
Trapping Column Shim-pack MCT C18/C8
- Micro-bore ODS column compatible with a mobile phase flowrate of
1 μL/min to several dozen μL/min
- Suppressing of metal coordinative adsorption by inactivation of the column
parts in contact with solution
- In addition to low molecular compounds, enabling even analysis of
peptides and other polymers

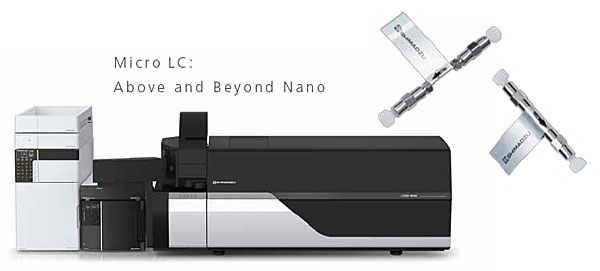

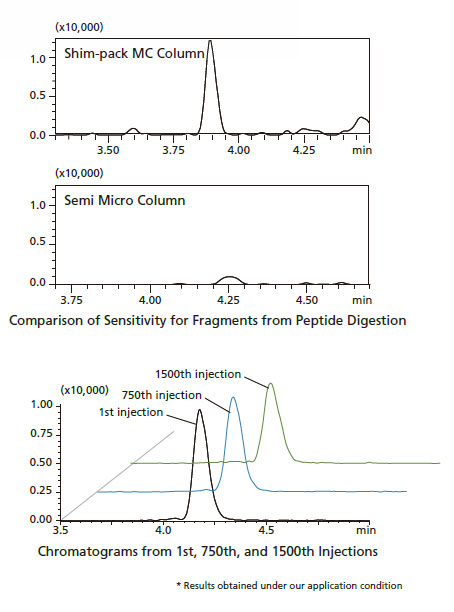

◆ Improved LCMS Sensitivity by Analysis with Micro Solvent Delivery
The use of a micro-bore column compatible with mobile phase flowrates
as low as 1 μL/min significantly improves the sensitivity of LCMS analysis.
◆ Excellent Durability in Routine Analyses of Biological Samples
Stable peak forms and retention times are obtained even after 1500
injections of plasma samples with only deproteinization by organic solvents.
◆Product Lineup
| Analysis Column | |||||
|---|---|---|---|---|---|
| Shim-pack MC | Particle Size | Length / i.d. | 0.15 mm | 0.175 mm | 0.3 mm |
| C18 | 1.9 µm | 50 mm | 228-59937-95 | 228-59937-93 | 228-59937-1 |
| Trapping Columns | |||||
| Shim-pack MCT | Particle Size | Length / i.d. | 0.3 mm | 0.5 mm | |
| C8 | 3 µm | 35 mm | 228-59939-91 | 228-59939-92 | |
| C18 | 3 mm | 35 mm | 228-59938-91 | 228-59938-92 | |

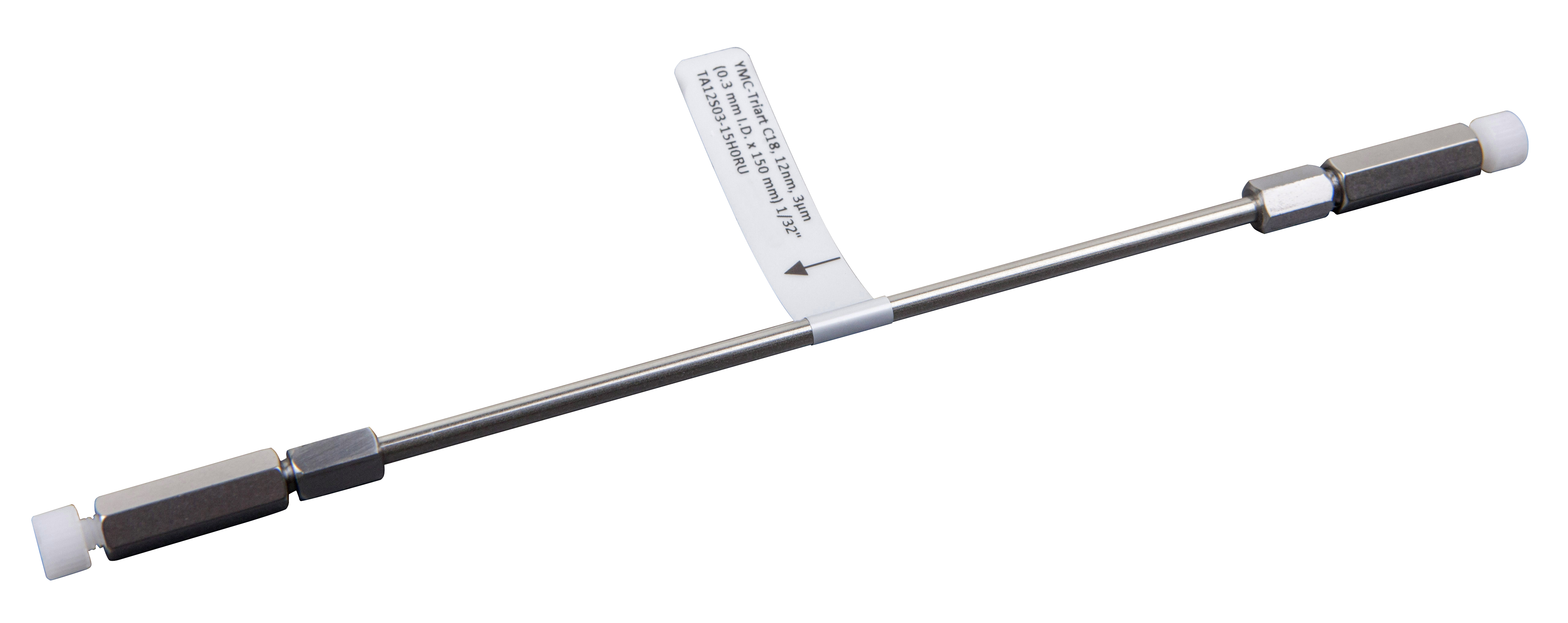

YMC-Triart Columns for Micro / Nano LC
YMC-Triart is a hybrid silica column prepared from well-controlled particle formation technology which is adapted from micro-reactor technology. The recently developed production step results in truly narrow particle and pore size distributions! With YMC-Triart micro/nano UHPLC/HPLC columns, wide pH ranges, high temperatures and even 100% H2O eluents are no longer a limitation to the day-to-day work in laboratories. Most importantly, due to its unique particle composition, a balanced hydrophobicity and silanol activity are achieved.
◆ Product Lineup
| Particle Size | Length / i.d. | 0.3 mm | 0.5 mm | |
|---|---|---|---|---|
| Triart C18 | 1.9 µm | 50 mm | 980-21968 | 980-24892 |
| 100 mm | 980-25289 | 980-25290 | ||
| 150 mm | 980-21967 | 980-24893 | ||
| Guard* | 980-24894 | 980-24895 | ||
| 3.0 µm | 50 mm | 980-24887 | 980-24888 | |
| 100 mm | 980-25287 | 980-25288 | ||
| 150 mm | 980-24889 | 980-24890 | ||
| Guard* | 980-24891 | 980-21969 | ||
| Triart Bio C4 | 1.9 µm | 50 mm | 980-24902 | 980-24903 |
| 100 mm | 980-25293 | 980-25294 | ||
| 150 mm | 980-24904 | 980-24905 | ||
| Guard* | 980-24906 | 98024907 | ||
| 3.0 µm | 50 mm | 980-24896 | 980-24897 | |
| 100 mm | 980-25291 | 980-25292 | ||
| 150 mm | 980-24898 | 980-24899 | ||
| Guard* | 980-24900 | 980-24901 |
* Pack of 3 guard columns; length 5 mm; including column coupler; use of guard columns not recommended with 150 mm columns
All columns equipped with 1/16" fitting
Installation Guide
◆ UF-Link Column-MS Interface Connection Mechanism
With UF-Link, a column-MS interface connection mechanism for Shimadzu micro LCMS systems, simply place the column in the column oven
and swing over the lever to provide improved sensitivity, without the risk of sample diffusion outside the column.

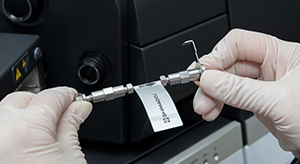

Attach the adapter to the column.
The unified threads on the adapter
make it compatible with a
wide variety of columns.

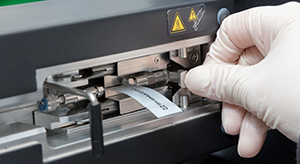

Place the column in the UF-Link
mechanism inside the oven.
Complete the connection by
swinging over the lever.
