    Accessories for reflection measurement

    Lesezeichen hinzufügen

    Last update: 5 June 2024

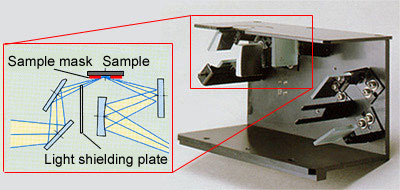

    Specular Reflectance Attachment, Reflection Absorption Spectrometry Attachment
    Name P/N Aussehen Qty Remarks Applicable models
    Sample mask, Φ8
    206-18752-01
    		206-18752-01 1 RAS-8000
    RAS-8000A
    Sample mask, Φ15
    206-18752-02
    		206-18752-02 1 RAS-8000
    RAS-8000A
    SRM-8000
    Sample mask, Φ25
    206-18752-03
    		206-18752-03 1 RAS-8000
    RAS-8000A
    Light Beam Mask, 3×3
    206-18608-01
    		1 RAS-8000
    RAS-8000A
    Light Beam Mask, 5×5
    206-18608-02
    		1 RAS-8000
    RAS-8000A
    Light Shielding Plate
    206-61588
    		206-61588 1 Average angle of incidence: 75° RAS-8000
    RAS-8000A
    Standard Mirror, P(30×30)-FR
    200-66123
    		1 For reference and adjustment RAS-8000
    RAS-8000A
    SRM-8000
    Grid Polarizer GPR-8000
    Name P/N Aussehen Qty Remarks Applicable models
    Fixing plate (top)
    206-61551
    		206-61551 1 1:*Note: "L-12" and "L-8" indicated after "Fixing Plate (Bottom)" represent the length of the long side of the fixing plate, 12 mm and 8 mm respectively. GPR-8000
    Fixing plate (top)
    206-61549
    		206-61549 1 2:*Note: "L-12" and "L-8" indicated after "Fixing Plate (Bottom)" represent the length of the long side of the fixing plate, 12 mm and 8 mm respectively. GPR-8000
    Fixing plate (top)
    206-61549-01
    		206-61549-01 1 3:*Note: "L-12" and "L-8" indicated after "Fixing Plate (Bottom)" represent the length of the long side of the fixing plate, 12 mm and 8 mm respectively. GPR-8000

    Supplementary keywords: Reflectance Spectroscopy, grid, accessory, maintenance part
