SH-1301

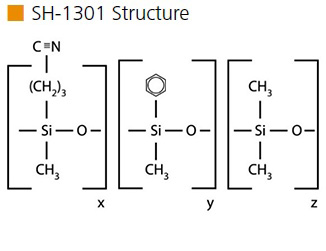

- Mittlere Polaritätsphase: Crossbond™ 6 % Cyanopropylphenyl / 94 % Dimethylpolysiloxan
- Universell einsetzbare Säulen für Restlösungsmittel, Alkohole, Sauerstoffverbindungen und flüchtige organische Verbindungen.
- Entspricht der USP-Phase G43.
- Ähnliche Phasen: Rtx-1301, DB-1301, CP-1301, SPB-1301, VF-1301ms, 007-1301, AT-1301
| P/N | ID | df (Film Thickness) | Length | Temp. Range |
|---|---|---|---|---|
| 221-76194-30 | 0.25 mm | 0.25 μm | 30 m | -20 to 280°C |
| 221-76194-60 | 0.25 mm | 0.25 μm | 60 m | -20 to 280°C |
| 227-36203-01 | 0.25 mm | 0.50 μm | 30 m | -20 to 270°C |
| 227-36204-01 | 0.25 mm | 1.00 μm | 30 m | -20 to 260°C |
| 227-36204-02 | 0.25 mm | 1.00 μm | 60 m | -20 to 260°C |
| 227-36204-03 | 0.25 mm | 1.00 µm | 105 m | -20 to 260°C |
| 227-36204-04 | 0.25 mm | 1.00 mm | 135 m | -20 to 260°C |
| 227-36205-01 | 0.25 mm | 1.40 μm | 60 m | -20 to 240°C |
| 227-36206-01 | 0.32 mm | 0.25 μm | 30 m | -20 to 280°C |
| 227-36207-01 | 0.32 mm | 0.50 μm | 30 m | -20 to 270°C |
| 227-36208-01 | 0.32 mm | 1.00 μm | 30 m | -20 to 260°C |
| 227-36208-02 | 0.32 mm | 1.00 μm | 60 m | -20 to 260°C |
| 227-36209-01 | 0.32 mm | 1.50 μm | 30 m | -20 to 250°C |
| 227-36209-02 | 0.32 mm | 1.50 μm | 60 m | -20 to 250°C |
| 227-36210-01 | 0.32 mm | 1.80 μm | 30 m | -20 to 240°C |
| 227-36210-02 | 0.32 mm | 1.80 μm | 60 m | -20 to 240°C |
| 227-36211-01 | 0.53 mm | 0.25 μm | 30 m | -20 to 280°C |
| 227-36212-01 | 0.53 mm | 0.50 μm | 30 m | -20 to 270°C |
| 227-36212-02 | 0.53 mm | 0.50 μm | 60 m | -20 to 270°C |
| 227-36213-01 | 0.53 mm | 1.00 μm | 30 m | -20 to 260°C |
| 227-36213-02 | 0.53 mm | 1.00 μm | 60 m | -20 to 260°C |
| 227-36214-01 | 0.53 mm | 1.50 μm | 30 m | -20 to 250°C |
| 221-75776-30 | 0.53 mm | 3.00 μm | 30 m | -20 to 240°C |
| 221-75776-60 | 0.53 mm | 3.00 μm | 60 m | -20 to 240°C |
Für SH-1301-Säulen mit integrierter Guard-Säule besuchen Sie bitte die Seite Integrierte Guard-Säulen.
