SH-2330

Add Bookmark

SH-2330

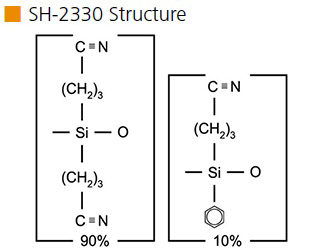

  • Highly polar phase: Crossbond™ 90% biscyanopropyl / 10% cyanopropylphenyl polysiloxane (Non-bonded)
  • General-purpose columns for cis/trans FAMEs, dioxin isomers.
  • Equivalent to USP G8 and G48 phase.
  • Similar phases: Rtx-2330, VF-23ms, SP-2330, SP-2331, SP-2380, BPX-70, 007-23, AT-Silar90
P/N ID df (Film Thickness) Length Temp. Range
227-36238-01 0.25 mm 0.10 μm 30 m 0 to 260/275°C
227-36238-02 0.25 mm 0.10 μm 60 m 0 to 260/275°C
227-36239-01 0.25 mm 0.20 μm 30 m 0 to 260/275°C
227-36239-02 0.25 mm 0.20 μm 60 m 0 to 260/275°C
227-36239-03 0.25 mm 0.20 µm 105 m 0 to 260/275°C
227-36241-01 0.32 mm 0.20 μm 30 m 0 to 260/275°C
227-36241-02 0.32 mm 0.20 μm 60 m 0 to 260/275°C
