Shimadzu Smart SPME Arrows

Shimadzu takes SPME Arrows to the next technological level by combining trace level sensitivity and high mechanical robustness with operational safety and full process tracebility.

Solid Phase Microextraction (SPME) is a solvent-free sample preparation technology. The arrows are either coated with a polymer, a sorbent or even both of them. With the new smart technology Shimadzu adds additional process safety and effectivity. Each SPME Arrow is equipped with its own chip for storing parameters, ranges and usage. The new Shimadzu AOC-6000 plus reads the smart chip of the Arrow and displays the information for the device such as temperature resistance, usage history and data and stroke count. Every Arrow can be traced over its complete lifetime.
All Smart SPME Arrows can be used with AOC-6000 and AOC-6000 plus (please note: smart function just supported by AOC-6000 plus).



  • Features of Smart SPME Arrows
  • Benefits of SPME Arrows
  • - Bigger surface and faster extraction
    - More surface provides more sorption phase
    - Stainless steel and optimized construction
    - Arrow formed tip
    - Smart chip technology
  • - Higher sample throughput
    - 10x higher sensitivity
    - Longer lifetime
    - Longer lifetime for injector septa
    - Tracks all parameters, ranges and usage history for full lifetime tracebility

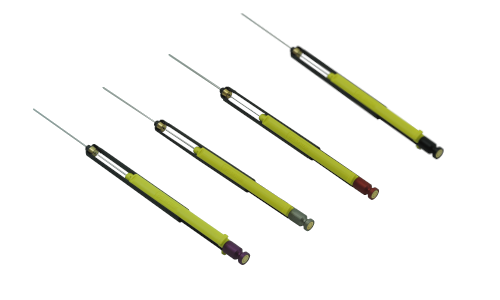

Smart Arrow

Color coded thread with smart chip. Stainless steel fiber with 20 mm long phase. Arrow shaped tip for smooth septa pentration



Phase Type Outer diam. Phase thickness Color P/N
Pack of 1 pc.
P/N
pack of 3 pcs.
P/N
pack of 5 pcs.
1. Polydimethylsiloxane (PDMS) 1.1 mm 100 µm Red 227-35334-01 227-35334-03 227-35334-05
2. Polydimethylsiloxane (PDMS) 1.5 mm 100 µm Red 227-35338-01 227-35338-03 227-35338-05
3. Acrylate 1.1 mm 100 µm Grey 227-35330-01 227-35330-03 227-35330-05
4. Carbon Wide Range (WR)/PDMS 1.1 mm 120 µm Light Blue 227-35331-01 227-35331-03 227-35331-05
5. Carbon Wide Range (WR)/PDMS 1.5 mm 120 µm Light Blue 227-35335-01 227-35335-03 227-35335-05
6. Divinylbenzene (DVB)/PDMS 1.1 mm 120 µm Purple 227-35332-01 227-35332-03 227-35332-05
7. Divinylbenzene (DVB)/PDMS 1.5 mm 120 µm Purple 227-35337-01 227-35337-03 227-35337-05
8. DVB/Carbon WR/PDMS 1.1 mm 120 µm Dark Grey 227-35333-01 227-35333-03 227-35333-05
9. DVB/Carbon WR/PDMS 1.5 mm 120 µm Dark Grey 227-35336-01 227-35336-03 227-35336-05
10. Polydimethylsiloxane (PDMS) 1.5 mm 250 µm Black 227-35339-01 227-35339-03 227-35339-05
Smart SPME Arrow kit 2 for method development.
Content: 1 pc. each of 1, 3, 4, 6, 8
    227-35341-01

All SPME Arrows have a phase length of 20 mm.



Liner for SPME Arrows

  Inner diameter (mm) P/N
pack of 3 pcs.
For SSL injector of GC-2010 / GC-2030 1.3 227-35327-03
1.7 227-35328-03







Shimadzu Smart SPME Fibers

Increase operational safety and full process tracebility with the individual paramaters of each Fiber stored on its unique chip.

SPME Fibers have been developed for fast and economical solvent-free analysis of samples. With the new smart technology Shimadzu adds additional process safety and effectivity. Each SPME Fiber is equipped with its own chip for storing parameters, ranges and usage. The new Shimadzu AOC-6000 plus reads the smart chip of the Fiber and displays its information, including temperature resistance, usage history and data, and stroke count. Every Fiber can be traced over its complete lifetime. All Smart SPME Fibers can be used with AOC-6000 and AOC-6000 plus (please note: smart function just supported by AOC-6000 plus).

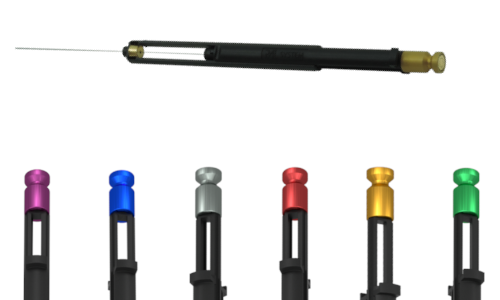

Smart Fiber

Color coded thread with smart chip. 10 mm long fiber, coated with fused Silica



Phase Type Phase thickness Color P/N
Pack of 1 pc.
P/N
pack of 3 pcs.
P/N
pack of 5 pcs.
1. Polydimethylsiloxane (PDMS) 7 µm Green 227-35342-01 227-35342-03 227-35342-05
2. Polydimethylsiloxane (PDMS) 30 µm Gold 227-35343-01 227-35343-03 227-35343-05
3. Polydimethylsiloxane (PDMS) 100 µm Red 227-35344-01 227-35344-03 227-35344-05
4. Acrylate 85 µm Grey 227-35348-01 227-35348-03 227-35348-05
5. Carbon Wide Range (WR)/PDMS 95 mm Dark Blue 227-35347-01 227-35347-03 227-35347-05
6. Divinylbenzene (DVB)/PDMS 65 µm Purple 227-35346-01 227-35346-03 227-35346-05
7. DVB/Carbon WR/PDMS 80 µm Dark Grey 227-35345-01 227-35345-03 227-35345-05
Smart SPME Fiber kit 1 for method development.
Content: 1 pc. each of 1, 2 , 3, 4 ,5
    227-35349-01
Smart SPME Fiber kit 2 for method development.
Content: 1 pc. each of 3, 4 , 5, 6, 7
    227-35350-01

All SPME Fibers have a standard length of 10 mm and the core material is fused Silica



Liner for SPME Fibers

  Inner diameter (mm) P/N
pack of 5 pcs.
For SSL injector of GC-2010 / GC-2030  0.75 221-75196
