ClickTek (GC)

ClickTek Ferrules (GC)
ClickTek technologies were created with the user’s point of view in mind, to simplify the troublesome process of replacing consumables. Just a single touch is needed to open the injection port and connect the column, making the liner and column replacement simple and easy. They also eliminate the risk of over-tightening or under-tightening the nuts, which could lead to damaged nuts or air-leaks. They were introduced with Nexis GC-2030 and are also available for GC-2010 (Plus) and GC-2025 series. The ClickTek ferrules can be used up to 350 °C.
P/N | Pack Size | Description | |
---|---|---|---|

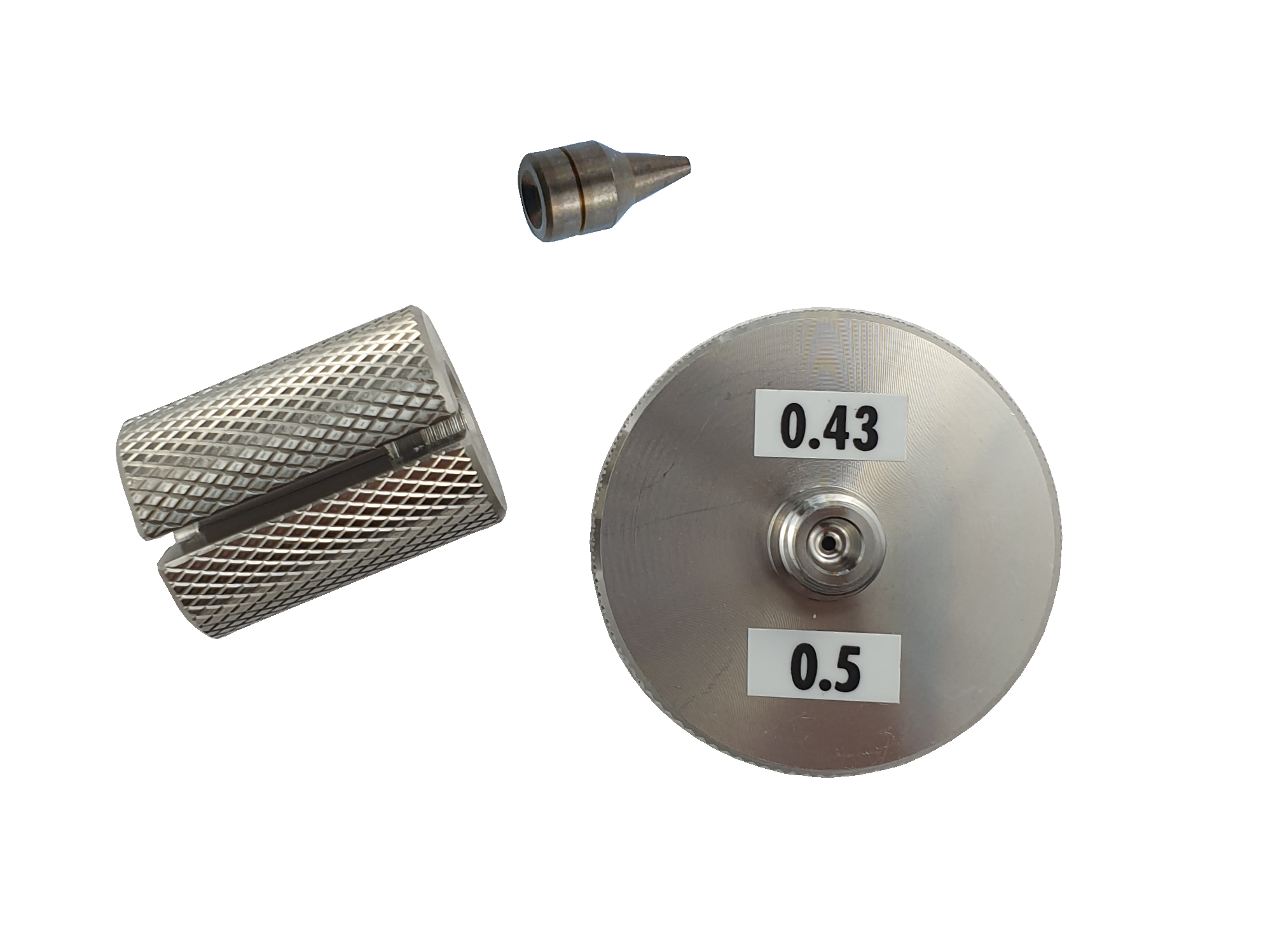

221-81162-11 | 6+1 | ClickTek kit for 0.10 - 0.25 mm ID columns* (6 ferrules + fixing tool) |
![]() |
221-81162-12 | 6+1 | ClickTek kit for 0.32 mm ID columns* (6 ferrules + fixing tool) | |
221-81162-13 | 6+1 | ClickTek kit for 0.53 mm ID columns* (6 ferrules + fixing tool) | |
221-81162-01 | 6 | ClickTek ferrule for 0.10 - 0.25 mm ID columns* |
![]() |
221-81162-02 | 6 | ClickTek ferrule for 0.32 mm ID columns* | |
221-81162-03 | 6 | ClickTek ferrule for 0.53 mm ID columns* and metal columns | |
221-81162-00 | 6 | ClickTek ferrule without hole for blind plugging (e.g. for leak-checks) |

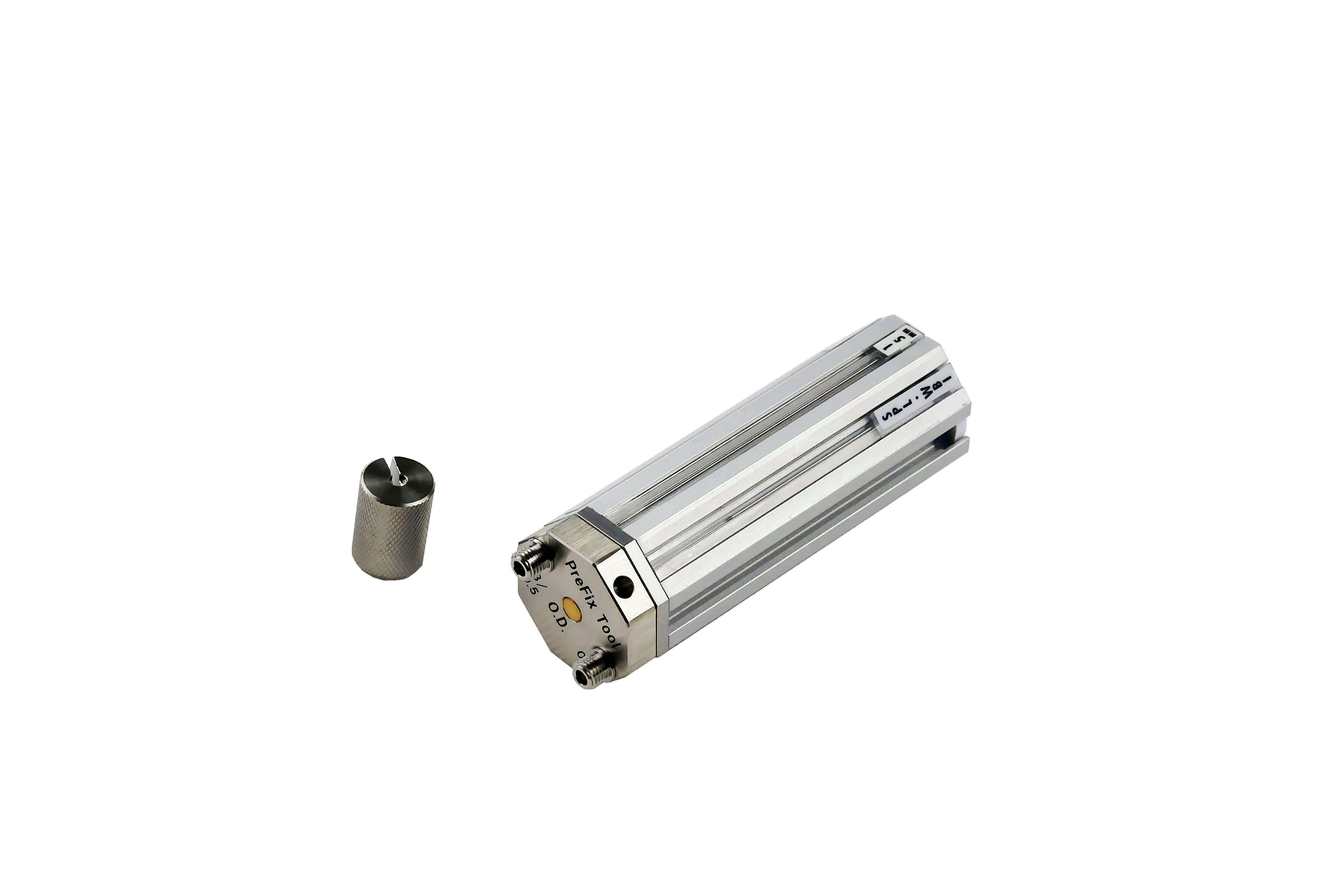

221-76547-43 | 1 | Prefixing tool for ClickTek (for correct column length) |
![]() |
*Column IDs corresponding to most fused silica capillary columns.
