Graphite-Vespel Ferrules (GC-MS)

Add Bookmark

Graphite-Vespel

Graphite-Vespel Ferrules (GC-MS)

Because of the lower permeability to oxygen compared to graphite, they are ideal for GC-MS applications. They can be used up to 325 °C and should be re-tightened after a few temperature cycles.

P/N Pack Size Description
670-15003-03 10 Graphite-Vespel ferrule for 0.10 - 0.25 mm ID columns* (GVF-04)
670-15003-04

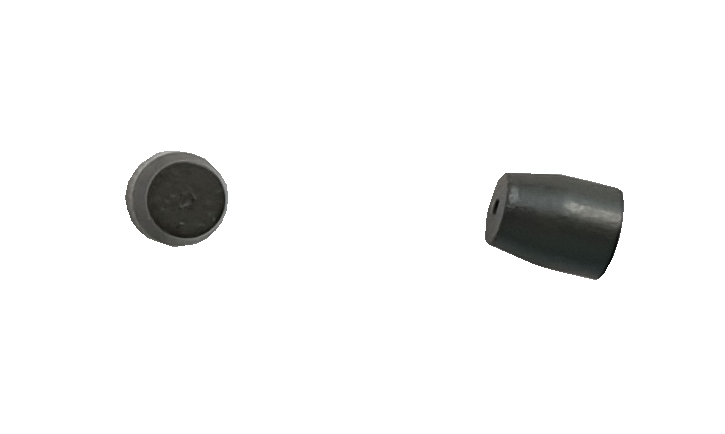

670-15003-04 10 Graphite-Vespel ferrule for 0.32 mm ID columns* (GVF-05)
670-15003-07 10 Graphite-Vespel ferrule for 0.45 - 0.53 mm ID columns* (GVF-08)
670-15003-01 10 Graphite-Vespel ferrule without hole for blind plugging (GVF-00)
225-19056 10 Graphite-Vespel ferrule with 2 holes for 0.10-0.25 mm ID columns* (GVF-04)

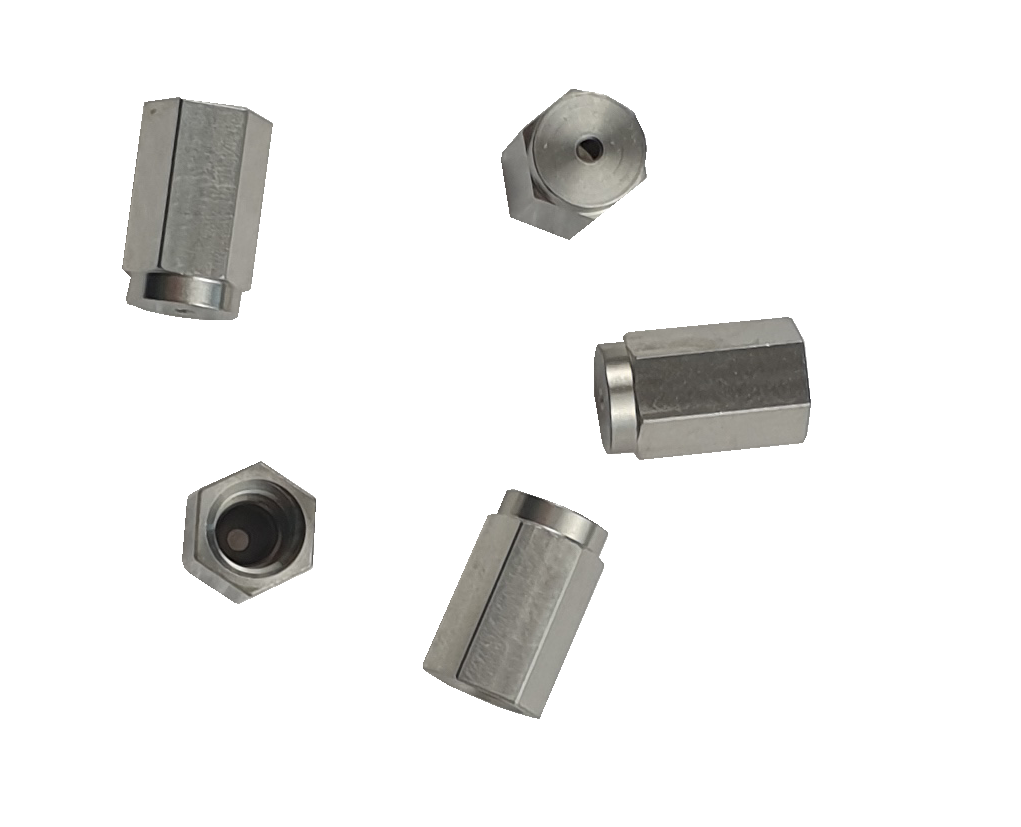

670-11009 5 Nut for Shimadzu GC-MS instruments
670-11009


*Column IDs corresponding to most fused silica capillary columns.
