SilTite

SilTite Ferrules (GC and GC-MS)

The SilTite nuts form a permanent leak-free seal and do not need to be re-tightened after initial temperature cycles. This is because the ferrules and the nuts expand and contract at the same rate, eliminating the appearance of leaks. They are ideal for high temperature applications.

P/N Pack Size Description

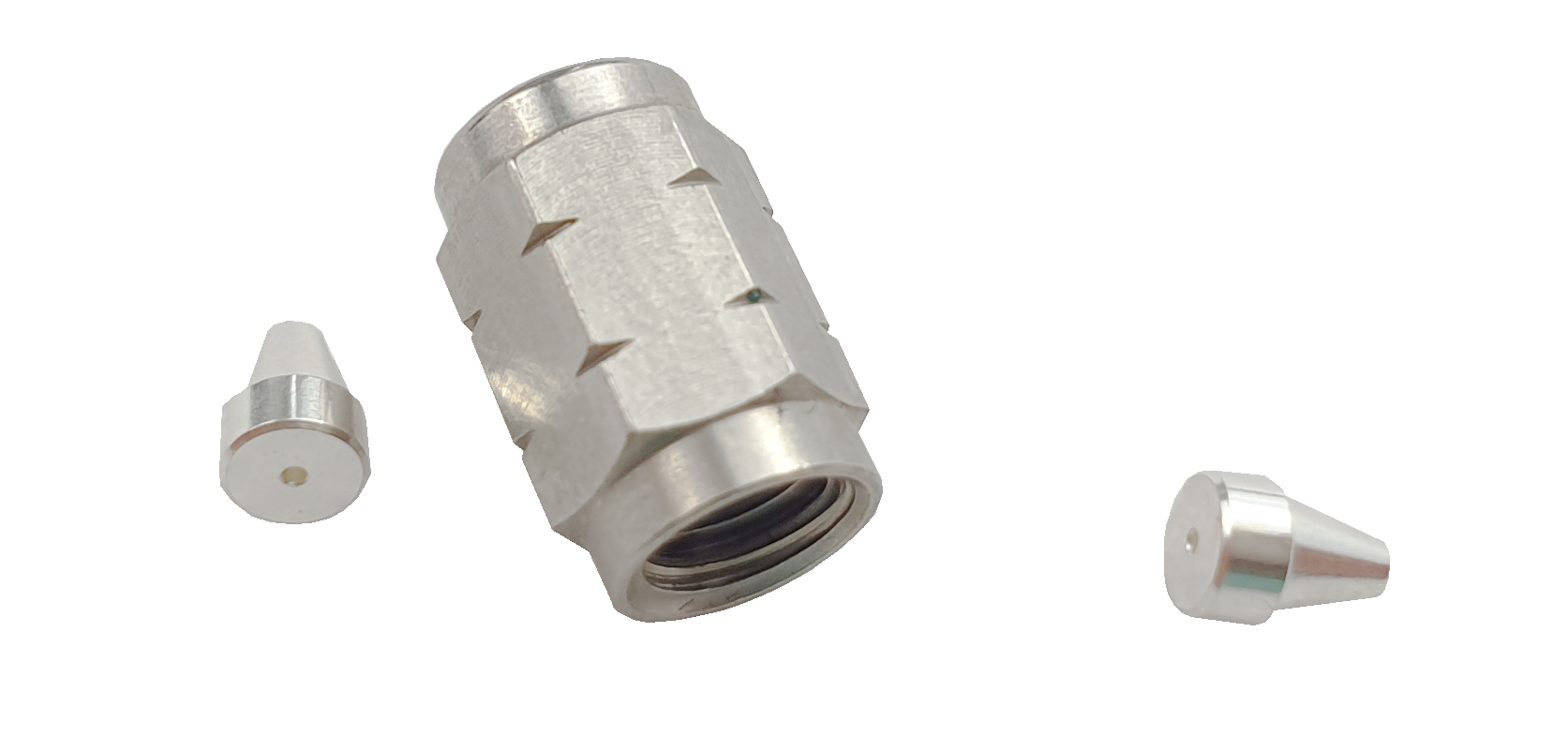

221-75200 2+10 SilTite Kit for 0.10 - 0.25 mm ID columns (2 nuts + 10 ferrules)
221-75200
221-75200-01 2+10 SilTite Kit for 0.32 mm ID columns (2 nuts + 10 ferrules)
221-75200-02 2+10 SilTite Kit for 0.53 mm ID columns (2 nuts + 10 ferrules)
221-75200-03 2+10 SilTite Kit for 1/32" ID columns (2 nuts + 10 ferrules)

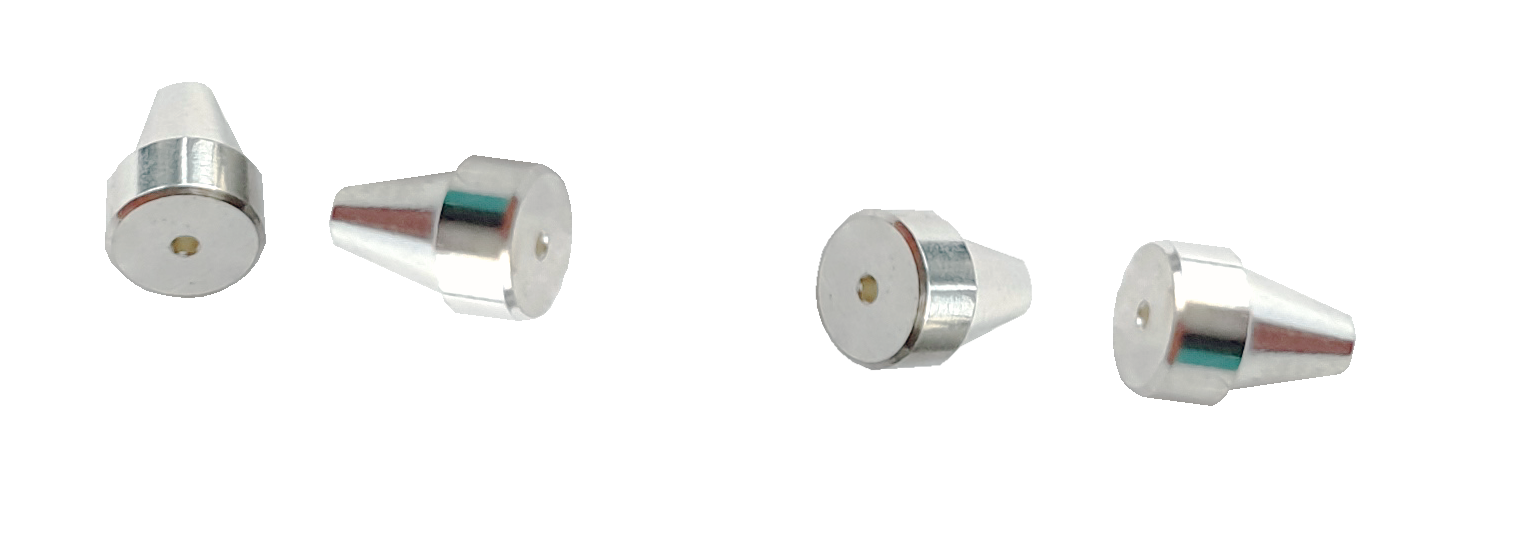

221-72563-04 10 SilTite ferrule for 0.10 - 0.25 mm columns ID* (SF-04)
221-72563-04
221-72563-05 10 SilTite ferrule for 0.32 mm ID columns* (SF-05)
221-72563-08 10 SilTite ferrule for 0.45 - 0.53 mm ID columns* (SF-08)
221-75200-04 10 SilTite ferrule for 1/32" ID columns
221-75186 5 SilTite nut for Shimadzu GC-MS instruments


*Column IDs corresponding to most fused silica capillary columns.
