Manual Injection Syringes

Add Bookmark

Syringes for Liquid Injection

Syringes with Fixed Needle



Needle Length: 50 mm

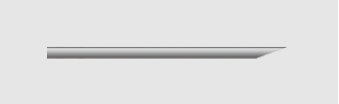

Needle Tip: Bevel
Syringe
Syringe



 Standard recommendation:
670-12552-01: 10 µl syringe with metal plunger for standard applications
221-75170-01: 10 µl syringe with PTFE tipped plunger for gas and viscous samples, minimized plunger bending


Specifications & Ordering Information

P/N Syringe Volume PTFE Tipped Plunger Needle Gauge Replacement Plunger P/N
221-75170 5 µl - 26 -
670-12552-01 10 µl - 26 -
221-75170-01 10 µl yes 26 221-75170-02
670-12510-31 25 µl - 25 -
221-75171 25 µl yes 25 221-75171-01
670-12510-36 50 µl - 25 -
221-75172 50 µl yes 25 221-75172-03
670-12510-18 100 µl - 25 -
221-75172-01 100 µl yes 25 221-75172-04
670-12510-19 250 µl - 25 -
221-75172-02 250 µl yes 25 221-75172-05
670-12510-20 500 µl - 25 -

Syringes with Removable Needle

  • Needle Length: 50 mm

    Needle Tip: Bevel
Syringe
Syringe



 Standard recommendation:
670-12553-21: 10 µL syringe with PTFE tipped plunger for gas and viscous samples, minimized plunger bending



Specifications & Ordering Information

P/N Syringe Volume PTFE Tipped Plunger Needle Gauge Replacement Plunger P/N Replacement Needle P/N
670-12553-21 10 µl yes 26 670-12553-33 670-12510-95
670-12510-74 25 µl - 25 - 670-12510-96
670-12510-75 50 µl - 25 -
670-12510-76 100 µl - 25 -
670-12510-77 250 µl - 25 -
670-12510-78 500 µl - 25 -

Syringes for Gas Analysis

Syringes with Removable Needle (screw type)



The needle is 30 mm long and is of a screw-in type, which ensures an easy exchange. Syringe



Specifications & Ordering Information

P/N Syringe Volume Replacement Needle P/N
670-12504-25 250 µl 670-12504-85
(5 pcs.)
670-12504-29 500  µl
670-12504-30 1 ml
670-12504-31 2.5 ml
670-12504-32 5 ml
670-12504-33 10 ml

Syringes with Exchangeable Needle (Luer Lock Type)



The Luer Lock syringes can be individually assembled to match specific needs. A syringe body, a needle and a syringe valve are needed for a complete syringe.
Syringe



Specifications & Ordering Information

P/N Syringe Volume PTFE Tipped Plunger Replacement Plunger P/N
221-54778-01 1 ml yes 221-54778-11
221-54778-02 5 ml yes 221-54778-12
221-54778-03 10 ml yes 221-54778-13
221-54778-04 25 ml yes 221-54778-14
221-54778-05 50 ml yes 221-54778-15
221-54778-06 100 ml yes 221-54778-16

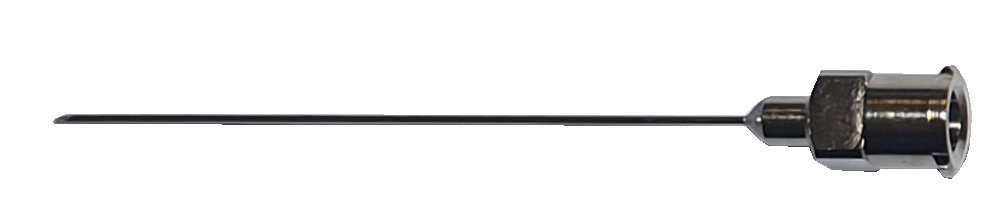

Luer Lock Needle

Needle Length: 50 mm
Needle Tip: Bevel
Syringe
Syringe



Specifications & Ordering Information

P/N Needle Gauge Qty
221-54778-51 23 5
221-54778-52 19 5
221-54778-54 14 5

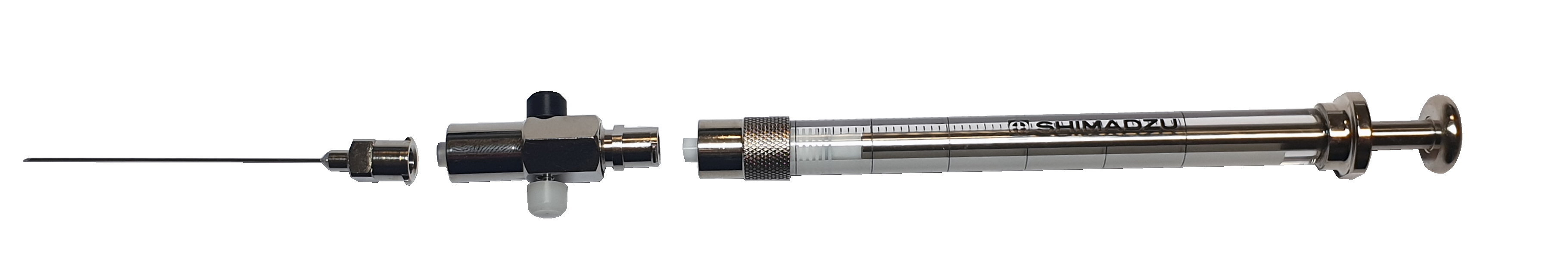

Syringe Valve (Luer Lock Type)

Luer Lock

Specifications & Ordering Information

P/N picture For Syringes with Description
221-54778-49 1 5 ml to 2 l Push button valve for Luer Lock needle
221-54778-50 2 50 µl to 2 l Push button valve for Luer Lock needle and tip syringe
