LIGHTNIRS - Specs

Portable functional Near-Infrared Spectroscopy System for Research

Add Bookmark

LIGHTNIRS

333 - LIGHTNIRS

Measurement method

3-wavelength absorbance calculation
Measured item

Variations in Oxy-Hb, Deoxy-Hb, and Total-Hb
Light source

3-wavelength near-infrared semiconductor lasers, Class 1
[IEC-60825-1 (2007)]
Detector

Avalanche photodiode
Power supply

15 V input from AC adapter or lithium-ion battery
External inputs

3 digital channels and 10 analog channels

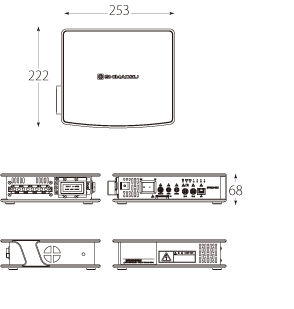

Dimensions

W253 × D222 × H68 mm (not including protrusions)
Weight

About 1600 g
(not including computer, batteries, and probes)
Operating temperature

15 to 30 °C, providing temperature changes are within 5 °C/h during measurements
Operating humidity

45 to 85 % (with no condensation)
Mehr lesen
Zeige weniger

LIGHTNIRS

Measured item

Variations from the initial values of oxygenated hemoglobin (Oxy-Hb), deoxygenated hemoglobin (Deoxy-Hb), and total hemoglobin (Total-Hb)
Number of measurement channels

8 pairs (max. 22 channels)
