MALDI-8000 Serie – Das Multi-User Benchtop MALDI-TOF Massenspektrometer - Specs

Upgrade für die MALDI-8000-Serie

Add Bookmark

  • EasyCare Funktionalität

    Full EasyCare functionality



  • Upgrademöglichkeiten

    Upgradable to EasyCare with license activation

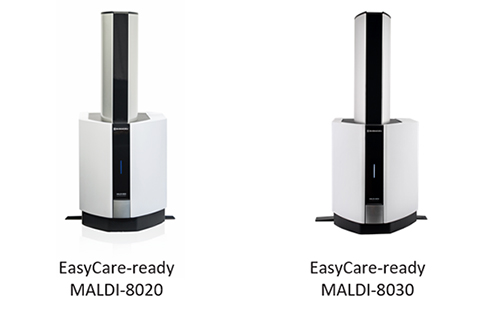

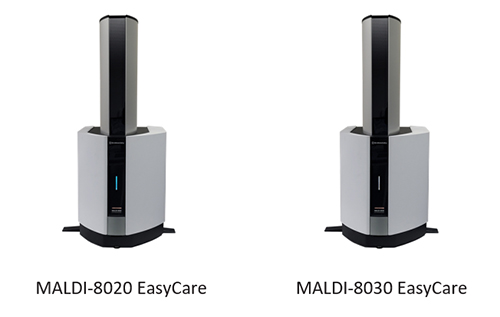

Die Spezifikationen sind für alle gezeigten Instrumente der MALDI-8000 Serie identisch

Massenbereich
Massenauflösung		 m/z 1 - 500,000
>5000 FWHM – ACTH 18-39 (m/z 2465)
Massengenauigkeit <20 ppm with internal calibration
<150 ppm with external calibration†
Empfindlichkeit 250 fmol – bovine serum albumin (loaded)
250 amol – Glu-1-Fibrinopeptide B (loaded)
Maße 450 mm x 745 mm x 1055 mm [17.7” x 29.5” x 41.5”]
600 mm x 745 mm x 1055 mm [23.6” x 29.5” x 41.5”]
Gewicht 92 kg

† Nearest neighbour external calibration on FlexiMass-SR48 target, within 30 minutes
All performance data are acquired using standard test samples on a FlexiMass-SR48 stainless steel target.
